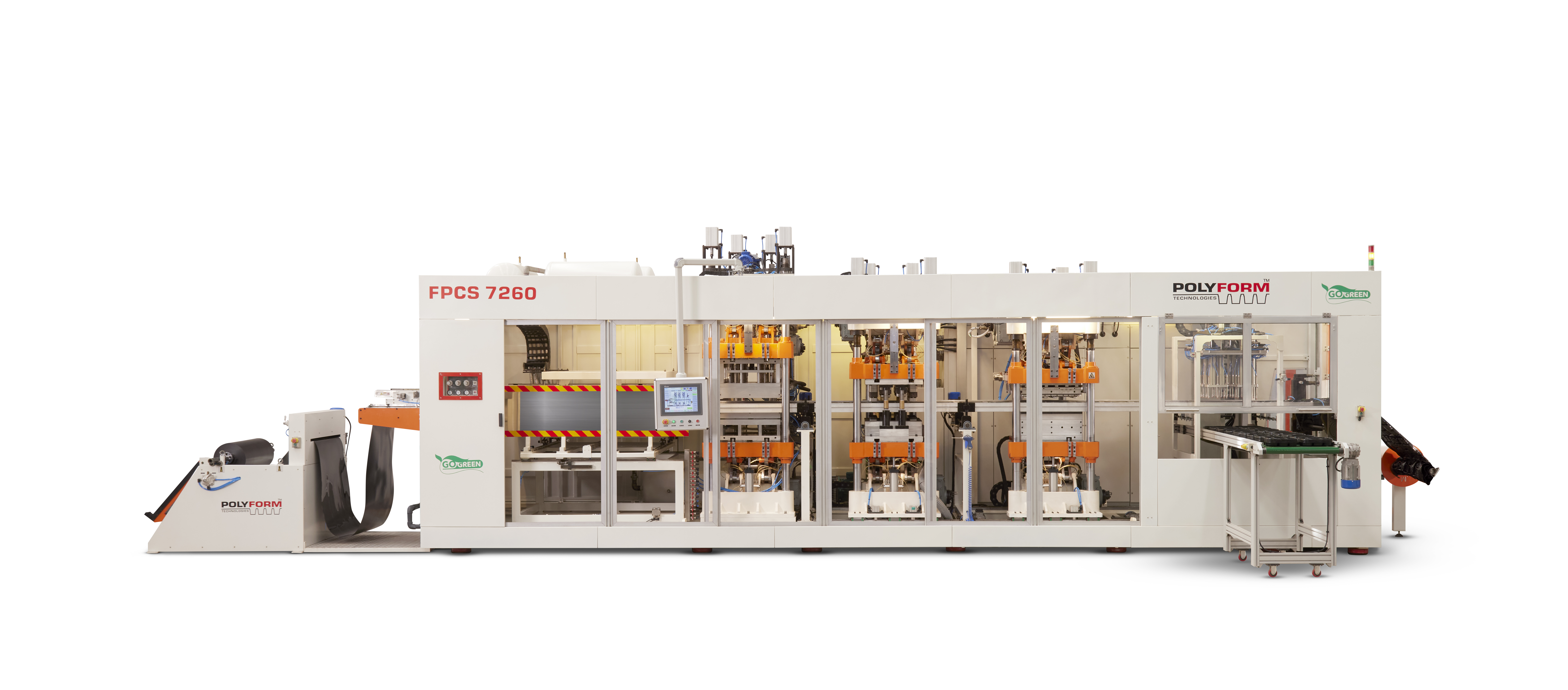

POLYFORM FCS Series Multi-station Thermoforming Machine.
SKU :#P0001
It is a new automatic series of thermoforming machines offering high performance, high yield, superior quality, and high efficiency with low energy consumption. It is suitable for mass production and is integrated with a modern, future-ready technology control system to ensure stable and efficient production.
It is suitable for forming PP, PS, PET, PLA, and PVC sheets, and can be widely used to produce various plastic containers, lids, trays, and customized packaging solutions.
| Technical Parameter | FCS 7260 |
| Max. Forming Area | 735 mm × 610 mm |
| Max. Forming Depth | 120 mm |
| Max. Sheet Width | 775 mm |
| Sheet Thickness Range | 0.25 mm – 1.50 mm |
| Suitable Materials | PP, PET, HIPS, PVC, PE, and others |
| Clamping Force | 500 kN |
| Cutting Force | 600 kN |
| Max. Cycle Speed | Up to 50 cycles per minute |
| Upper / Lower Heating Power | 68.5 kW |
| Forming Pressure | 6–8 bar |
| Total Installed Power | 188.5 kW |
| Machine Dimensions (L × W × H) | 12 × 4.5 × 3 meters |
| Machine Weight | 15,000 kg |
| Cavity Geometry | Circular / Tapered for nesting |
The POLYFORM FCS Series Multi-Station Thermoforming Machine is a fully automatic, high-performance system designed for mass production. It features servo-driven movements, flexible process configurations, and precise forming using air pressure and vacuum. With fast cycle speeds, quick mold changeovers, and stable operation, it delivers high efficiency, consistent quality, and reliable production for a wide range of plastic packaging applications.
Key Features & Functions
- Multiple configuration options:
Forming → Cutting → Stacking, or
Forming → Punching → Cutting → Stacking
depending on the product requirements.
- All movements are driven by servo motors and integrated with automation for:
Feeding → Heating → Forming → Cutting → Stacking
The entire production process is fully automatic. - Mold locking is achieved by pneumatic clamps with a quick-change system, allowing easy and fast changeovers.
- Forming is carried out using 6 bar air pressure combined with vacuum.
